Primary Product Image for Deckard 2-Handle 8" Widespread Bathroom Faucet
Support Information For:

Deckard 2-Handle 8" Widespread Bathroom Faucet

With Push & Seal™

  • Matte Black
  • Model: LG49-DAPB
Register your faucet
Contact Support
Technical Documents

Download Specs & Images

Matching UPC Numbers
  • UPC
    Model Number
    Finish
  • 038877633533
    LG49-DAPC
    Polished Chrome
  • 038877633540
    LG49-DAPK
    Brushed Nickel
  • 038877633526
    LG49-DAPB
    Matte Black

Warranty & Parts

PForever Warranty

All faucets are backed by our Pforever Warranty , covering finish and function for as long as you own your home.

(Proof of product purchase or of original home owenership is required)

Warranty Replacement Parts

To help us provide you with the quickest warranty service, please have the following information available when you contact us: description of the problem you're having, model number, purchaser contact information, and date of purchase. We may ask you to provide proof of purchase or return product for inspection.

Contact customer service before ordering parts:

1-800-PFAUCET(1-800-732-8238)
Monday-Friday 7:00 am to 4:00 pm PST, Saturday 6:30 am to 2:30 pm PST.

Visit our Pfister Warranty Page for more information on warranty coverage.

View Parts Diagram
Out of Warranty Parts Purchases

To purchase replacement parts for your out of warranty faucet, visit our Where to Buy page and select the online retailer section. If you are not sure whether or not your faucet is covered under warranty, please contact us at 1-800-732-8238 (Monday-Friday 7:00 am to 4:00 pm PST, Saturday 6:30 am to 2:30 pm PST) before purchasing parts.

Parts Diagram

Deckard
2-Handle 8" Widespread Bathroom Faucet

  • Matte Black
  • Model: LG49-DAPB
  • Part #
    Item
  • 900-0360
    Hot Side Valve Body for Widespread 49 Series
  • 900-0370
    Cold Side Valve Body for Widespread 49 Series
  • 910-0310
    Ceramic Disc Hot Side 1/4 Turn Cartridge
  • 910-0320
    Ceramic Disc Cold Side 1/4 Turn Cartridge
  • 931-0410
    Sput Locknut for 26/49/531 Series
  • 950-1210
    Endbody Flange
  • 950-1640
    O-Ring Set
  • 950-1930
    Push & Seal™Locknut Washer
  • 950-5480
    Widespread Quick Connect Clip
  • 962-0420
    Cartridge Retainer Nut
  • 962-0850
    Retainer Nut and Washer
  • 970-0390
    Inlet Connector for Widespread 49 Series
  • 971-0250
    Quick Connect Hose Assembly for Widespread 49 Series
  • 972-097B
    Push & Seal™Drain Assembly

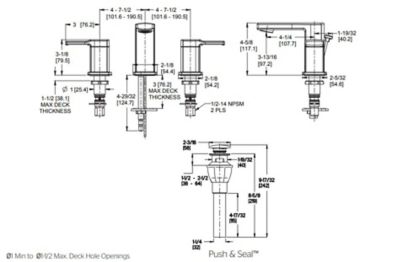

Specifications

GPM Flow Rate 1.2
# of Handles 2
Deck To Aerator Height 3-13/16
Drain Assembly American Push & Seal
Max Deck Thickness 1-1/2
Configurations
Hole Configuration

3-Hole
Code Compliance
  • ADA Compliant
  • CEC Certified
  • NSF/ANSI/CAN 61: Q≤1
  • IAPMO Certified to ASME A112.18.1/CSA B125.1
